Realtime SDK接入指南

1. 安装配置 UOS Launcher

参考 Launcher 教程，安装 Launcher 后，关联 UOS APP， 开启 Multiverse 服务并安装 Multiverse SDK。

注意: 请务必确认在进行后续教程之前，已经成功完成了 Launcher 教程的安装步骤，否则可能导致后续接入无法顺利进行。

2.Sync Realtime Demo

该项目是基于 Sync Realtime 开发的一个支持多人同房间信息同步的示例程序， 展示了 SDK 基本接口的使用方式。

2.1.导入项目素材资源包

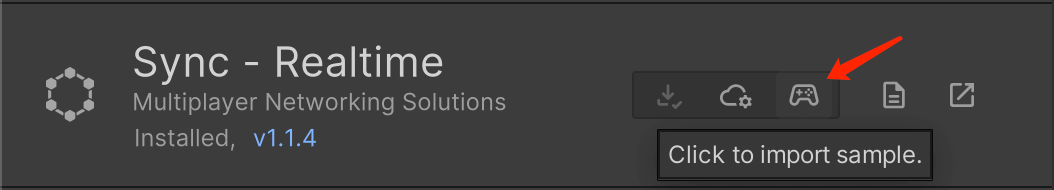

在 UOS Launcher 中点击「import sample」按钮，即可导入项目示例工程资源包。

2.2.打开 Sample 场景

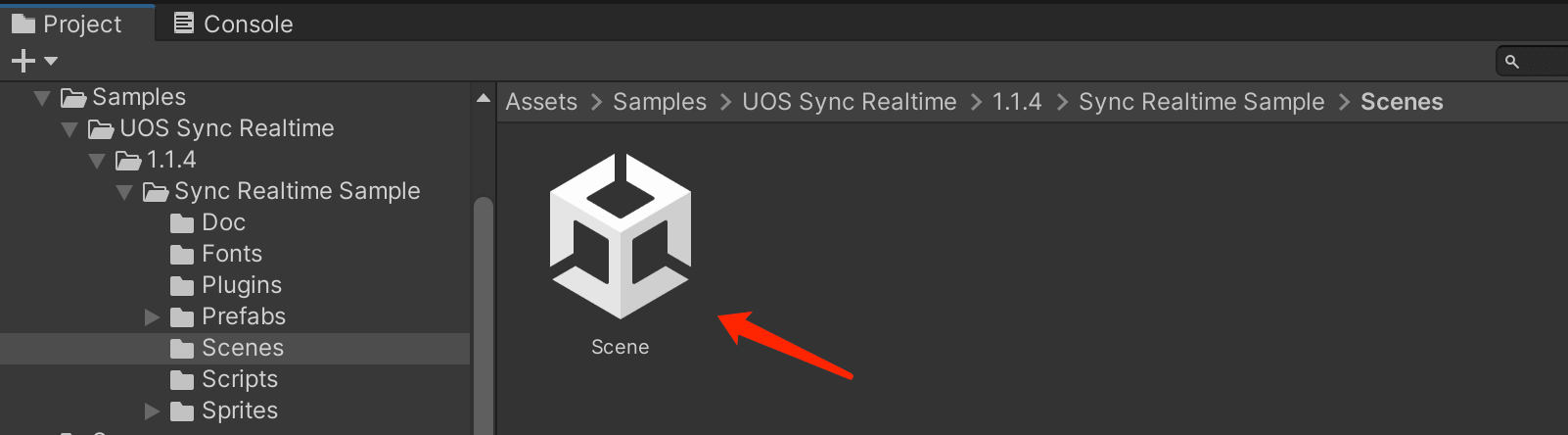

导入资源包后，在 Assets/Samples/UOS Sync Realtime/X.Y.Z/Sync Realtime Sample/Scenes/Scene.unity 路径下（其中 X.Y.Z 为已安装的 Sync - Relay SDK 的版本号），可以看到示例的 SampleScene 场景并打开。

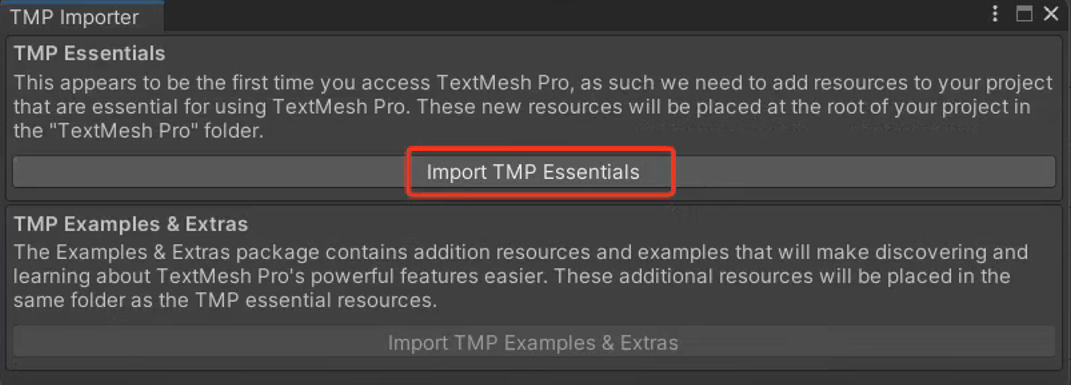

打开场景后，在弹出的窗口中，点击「Import TMP Essentials」来导入 TextMeshPro 的字体资源。

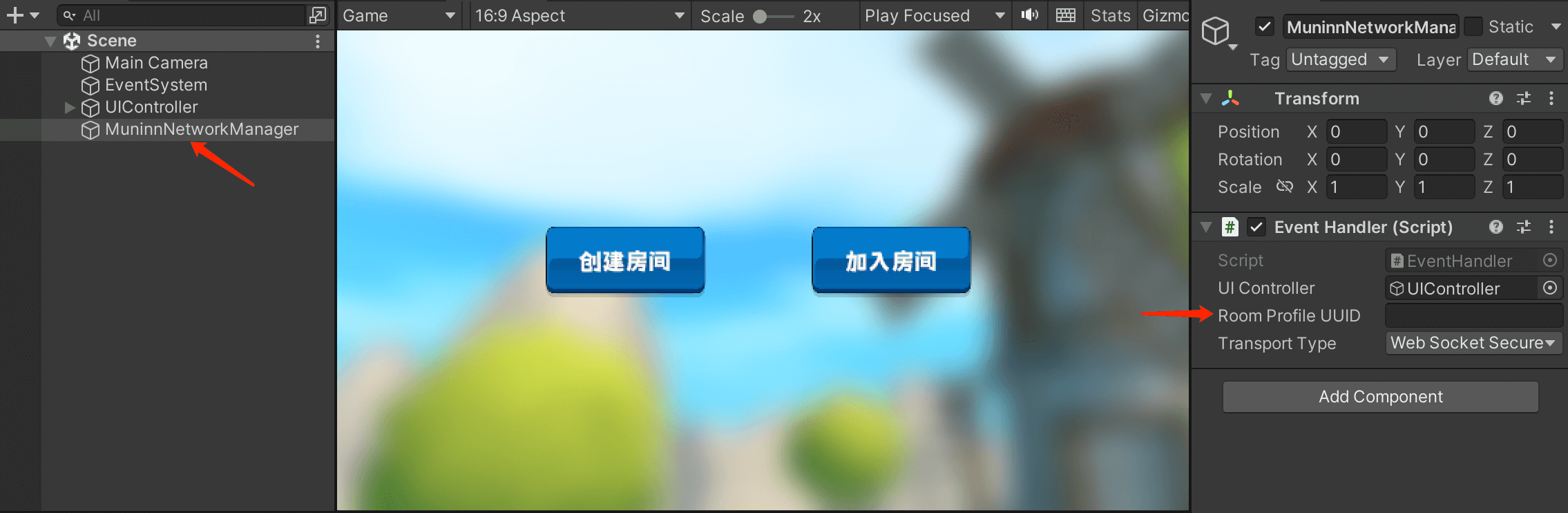

打开场景后，填写 MuninnNetworkManager 游戏对象中 RoomProfileUUID 信息。点击运行项目，创建房间。

注: 此处 RoomProfileUUID 如何获取

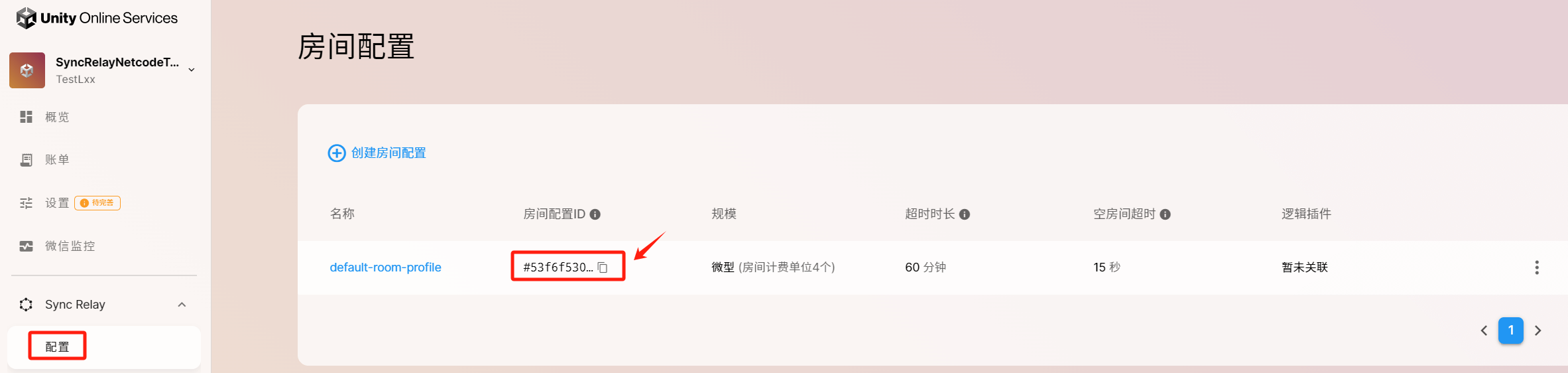

此处的 RoomProfileUUID 可在 UOS「Sync -> 配置」处的房间列表项内获取

你也可以点击以下链接在线体验，或者查看相关的示例程序。

在线体验 示例程序

3.核心类&接口

MuninnNetwork 接口

MuninnNetwork 是 Sync 为客户端提供的调用接口。

public class MuninnNetwork
{
    // 创建并加入房间
    public static void CreateAndJoinRoom(CreateRoomRequest request);

    // 创建或加入房间（若房间存在则直接加入）
    public static void CreateOrJoinRoom(CreateOrJoinRoomRequest request);

    // 通过房间roomUUID加入房间，如果为私有房间需要提供joinCode
    public static void JoinRoomByUUID(string roomUUID, string joinCode = "");

    // 通过roomCode加入房间，如果为私有房间需要提供joinCode
    public static void JoinRoomByRoomCode(string roomCode, string joinCode = "")

    // 通过roomName加入房间，如果为私有房间需要提供joinCode (使用前请确保在UOS管理页面开启全局房间名称唯一功能，否则不保证结果的唯一性)
    public static void JoinRoomByRoomName(string roomName, string joinCode = "")

    // 获取房间列表
    public static void ListRooms(ListRoomRequest request, Action<ListRoomResponse> callback);

    // 主动离开房间
    public static void LeaveRoom();

    // 主动关闭连接
    public static void Disconnect();

    // 关闭房间
    public static void CloseRoom(string roomUUID, Action<CloseRoomResponse> callback);

    // 发送消息
    public static void RaiseEvent(byte[] data, RaiseEventOptions options);

    // 订阅兴趣组
    // 兴趣组范围是[1, 255]之间, 0 是系统默认保留(不需要订阅)
    public static void SubscribeGroups(List<uint> groups);

    // 退订兴趣组
    public static void UnsubscribeGroups(List<uint> groups);

    // 添加 CachedEvent
    public static void AddCachedEvent(string tag, byte[] data, Action<MuninnAddCachedEventResponse> callback);

    // 移除 CachedEvent
    public static void RemoveCachedEvent(string tag, Action<MuninnRemoveCachedEventResponse> callback);

    // 设置 StickyEvent
    public static void SetStickyEvent(string key, byte[] data, StickyEventScope scope, Action<MuninnSetStickyEventResponse> callback);

    // 移除 StickyEvent
    public static void RemoveStickyEvent(string key, StickyEventScope scope, Action<MuninnRemoveStickyEventResponse> callback);

    // 查询 StickyEvent
    public static void GetStickyEvent(string key, StickyEventScope scope, Action<MuninnGetStickyEventResponse> callback);

    // 远程调用 MasterClient 上的服务端逻辑
    public static void ServerCall(byte[] data);

    // 踢走玩家
    public static void KickPlayer(uint senderId);

    // 更新玩家的属性
    public static void UpdatePlayerInfo(MuninnPlayer player, Action<MuninnUpdatePlayerResponse> callback);

    // 更新房间自定义属性
    public static void UpdateRoomCustomProperties(Dictionary<string, string> properties, Action<MuninnUpdateRoomCustomPropertiesResponse> callback);

    // 更新房间属性，目前仅支持更新 Visibility、JoinCode、RoomName(房间名) 和 MaxPlayers （这个需要注意当前房间的人数）
    public static void UpdateRoom(string roomUUID,  UpdateRoomRequest request, Action<UpdateRoomResponse> callback)

    // 更新房间状态，仅支持更新 Ready 和 Running 状态
    public static void ChangeRoomStatus(string roomUUID,  MuninnLobbyRoomStatus status, Action<ChangeRoomStatusResponse> callback)
}

MuninnBehaviour 接口

MuninnBehaviour 是 Sync 回调客户端的接口。开发者需要根据自己游戏逻辑的需要去实现这些接口。

public class MuninnBehaviour : MonoBehaviour
{
    // 成功加入房间
    public virtual void OnJoinedRoom(MuninnRoomView roomView);

    // 加入房间失败
    public virtual void OnJoinRoomFailed(MuninnError error);

    // 有新玩家进入房间时通知
    public virtual void OnPlayerEnteredRoom(MuninnPlayer player);

    // 有玩家离开房间时通知
    public virtual void OnPlayerLeftRoom(MuninnPlayer player);

    // 成功离开房间
    public virtual void OnLeftRoom(LeaveRoomEvent leaveRoomEvent);

    // 连接关闭
    public virtual void OnDisconnected();

    // 收到消息
    public virtual void OnEvent(MuninnEvent muninnEvent);

    // 成功订阅兴趣组
    public virtual void OnSubscribeGroups(MuninnSubscribeGroupResponse rsp);

    // 订阅兴趣组失败
    public virtual void OnSubscribeGroupsFailed(MuninnError error);

    // 成功退订兴趣组
    public virtual void OnUnsubscribeGroups(MuninnUnsubscribeGroupsResponse rsp);

    // 退订兴趣组失败
    public virtual void OnUnsubscribeGroupsFailed(MuninnError error);

    // 收到Server Call请求
    public virtual void OnServerCall(MuninnEvent e);

    // MasterClient发生变化
    public virtual void OnMasterClientChanged(uint masterClientId);

    // 成功踢走玩家
    public virtual void OnKickedPlayer(MuninnKickPlayerResponse rsp);

    // 踢走玩家失败
    public virtual void OnKickPlayerFailed(MuninnError error);

    // 玩家属性更新通知
    public virtual void OnPlayerInfoUpdated(MuninnPlayer player);

    // 房间自定义属性更新通知
    public virtual void OnRoomCustomPropertiesUpdated(Dictionary<string, string> customProperties);

    // 与房间建立连接之前
    public virtual void BeforeConnectRoom(JoinRoomResponse resp);
}

MuninnRoomView(房间动态信息) 接口

MuninnRoomView 维护了房间的基本信息+动态信息（只读）。

public class MuninnRoomView
{
    // 房间的静态数据
    public MuninnRoom Room { set; get;}

    // 房间的动态数据
    // 自己在房间内的唯一ID
    public uint SenderId {get;}

    // 房间内MasterClient的ID
    public uint MasterClientId {get;}

    // 自己的信息
    public MuninnPlayer Self() {get;}

    // 自己是不是MasterClient
    public bool IsMasterClient();

    // 房间里的在线用户
    public List<MuninnPlayer> Players {get;}

    public MuninnPlayer GetPlayerBySenderId(uint senderId);
    public MuninnPlayer GetPlayerByUniqueId(string uniqueId);

    // 获取CachedEvent列表
    public List<MuninnCachedEvent> RoomCachedEvents {get;}

    // 获取自己订阅过的群组
    public List<uint> MyGroups {get;}
}

4.集成示例

MuninnBehaviour

public partial class MuninnBehaviour : MonoBehaviour
{
    // 子类覆盖时，需要调用 base.Awake
    public virtual void Awake()
    {
        SetupMuninnCallbacks();
    }

    // 子类覆盖时，需要调用 base.Update
    public virtual void Update()
    {
        MuninnUpdate();
    }

    // 子类覆盖时，需要调用 base.OnDestroy
    public virtual void OnDestroy()
    {
        // ...
    }
}

// 继承MuninnBehaviour类
class MultiPlayControllerSimple : MuninnBehaviour
{

}

配置信息并连接

注：此处 AppId、AppSecret 和 RoomProfileUUID，可在 UOS 网站上获取

此处的 RoomProfileUUID 可在 UOS「Sync -> 配置」处的房间列表项内获取

class MultiPlayControllerSimple : MuninnBehaviour
{
    public void Start()
    {
        // 请在加入房间前执行
        // 配置UOS App信息
        MuninnSettings.UosAppId = "<AppId>";
        MuninnSettings.UosAppSecret = "<AppSecret>";
        MuninnSettings.RoomProfileUUID = "<RoomProfileUUID>";

        // 支持WebSocket/WebSocketSecure/KCP/UTP, 默认为UTP
        MuninnSettings.TransportType = MuninnTransportType.WebSocket;

        // 开启开发模式, 默认不开启。
        // 开启后屏蔽客户端&服务端的心跳检测, 此时建议Transport选择WebSocket/WebSocketSecure
        MuninnSettings.Development = true;

        // 设置本地玩家的信息
        MuninnNetwork.PlayerInfo = new MuninnPlayerInfo()
        {
            Id = "<playerUniqueId>",
            Name = "<playerName>",
            Properties = new Dictionary<string, string>
            {
                ["key1"] = "value1",
                ["key2"] = "value2",
            },
        };
    }
}

重载事件回调

class MultiPlayControllerSimple : MuninnBehaviour
{
    public override void OnJoinedRoom(MuninnRoomView roomView)
    {
        // 1. 加入房间后需要处理的信息
        // 房间信息
        MuninnRoom curRoom = roomView.Room;
        // 玩家自己的信息
        MuninnPlayer owner = roomView.Self();
        // 房间的在线用户列表（包含自己）
        List<MuninnPlayer> players = roomView.Players;
        // 加入房间时，附带的CachedEvent列表，帮助游戏快速恢复快照等等
        List<MuninnCachedEvent> cachedEvents = roomView.CachedEvents;

        // 2. 其他信息
        // 房间给该玩家分配的Id (保证唯一)
        uint senderId = roomView.SenderId;
        // MasterClient对应的Id
        uint masterClientId = roomView.MasterClientId;
        // 快速判断自己是不是MasterClient
        roomView.IsMasterClient();
    }

    public override void OnPlayerEnteredRoom(MuninnPlayer player)
    {
          Debug.LogFormat("[Muninn] Player {0} entered room", player.Id);
    }

    public override void OnPlayerLeftRoom(MuninnPlayer player)
    {
          Debug.LogFormat("[Muninn] Player {0} left room", player.Id);
    }

    public override void OnLeftRoom(LeaveRoomEvent e)
    {
        LeaveRoomReason reason = e.reason;
        Debug.LogFormat("[Muninn]: OnLeftRoom() was called by Muninn. Reason : {0}", reason);
        switch (reason)
        {
            case LeaveRoomReason.DisconnectByClient:
                break;
            case LeaveRoomReason.DisconnectByKick:
                break;
            case LeaveRoomReason.DisconnectByTimeout:
                break;
            case LeaveRoomReason.DisconnectByCloseRoom:
                break;
        }
    }

    public override void OnEvent(MuninnEvent e)
    {
          Debug.Log("[Muninn] OnEvent() : " + System.Text.Encoding.Default.GetString(e.Data));
    }
}

发送消息接口

var content = "Hello";

// 1.普通消息
MuninnNetwork.RaiseEvent(
    Encoding.UTF8.GetBytes(content),
    new RaiseEventOptions() {Target = RaiseEventTarget.TO_ALL}
);

// 2.群组消息
MuninnNetwork.RaiseEvent(
    Encoding.UTF8.GetBytes(content),
    new RaiseEventOptions() {
        Target = RaiseEventTarget.TO_GROUPS,
        TargetGroups = new List<uint> {1, 2, 3}.ToArray(),
    }
);

// 3.发送给Logic Plugin处理的消息
MuninnNetwork.RaiseEvent(
    Encoding.UTF8.GetBytes(content),
    new RaiseEventOptions() {Target = RaiseEventTarget.TO_PLUGIN}
);

// 4.ServerCall
MuninnNetwork.ServerCall(Encoding.UTF8.GetBytes(content));

房间接口

// 加入房间（三种方式）
// 1.通过房间UUID, 直接加入房间
MuninnNetwork.JoinRoom(new JoinRoomRequest() {
   RoomUuid: "<roomuuid>",
   JoinCode: "<joincode>", // 私有房间时需要填
});

// 2.创建新房间后进入房间
CreateRoomRequest createRoomRequest = new CreateRoomRequest()
{
    Name = "<name>",
    Namespace = "<namespace>",
    MaxPlayers = 20,
    Visibility = MuninnRoomVisibility.Public,
    // 创建私有房间
    // Visibility = MuninnRoomVisibility.Private,
    // JoinCode = "<joincode>"
    CustomProperties = new Dictionary<string, string>()
    {
        {"key1", "value1"},
        {"key2", "value2"},
    },
};
MuninnNetwork.CreateAndJoinRoom(createRoomRequest);

// 3.创建房间并进入（如果房间已存在则直接进入）
CreateOrJoinRoomRequest createOrJoinRoomRequest = new CreateOrJoinRoomRequest()
{
    RoomUUID = "<roomUUID>",
    Name = "<name>",
    Namespace = "<namespace>",
    MaxPlayers = 20,
    Visibility = MuninnRoomVisibility.Public,
    // 创建私有房间
    // Visibility = MuninnRoomVisibility.Private,
    // JoinCode = "<joincode>"
    CustomProperties = new Dictionary<string, string>()
    {
        {"key1", "value1"},
        {"key2", "value2"},
    },
};
MuninnNetwork.CreateOrJoinRoom(createOrJoinRoomRequest);


// 获取房间列表
Action<ListRoomResponse> callback = (resp) =>
{
    if (resp.Code == (uint)MuninnCode.OK)
    {
        Debug.LogFormat("List Room successfully, count: {0}", resp.TotalCount);
    }
    else
    {
        Debug.LogFormat("List room fail, errorCode: {0}", resp.Code);
    }
};
ListRoomRequest request = new ListRoomRequest() { Status = MuninnLobbyRoomStatus.Ready };
MuninnNetwork.ListRooms(request, callback);


// 主动关闭房间
Action<CloseRoomResponse> closeRoomCallback = (r) =>
{
  if (r.Code == (uint)MuninnCode.OK)
  {
       Debug.Log("close successfully");
  }
};

MuninnNetwork.CloseRoom("<roomUUID>", closeRoomCallback);

兴趣组接口

List<uint> groups = new List<uint>() { 1, 2, 3 };

// 1.订阅兴趣组
// 兴趣组范围是[1, 255]之间, 0 是系统默认保留(不需要订阅)
MuninnNetwork.SubscribeGroups(groups);

// 2.退订兴趣组
MuninnNetwork.UnsubscribeGroups(groups);

CachedEvent接口

string tag = "<cached-event-tag>";
byte[] data = Encoding.UTF8.GetBytes("<cached-event-data>");

// 1.添加CachedEvent
Action<MuninnAddCachedEventResponse> callback = (r) =>
{
    if (r.Code == (uint)MuninnCode.OK)
    {
        Debug.LogFormat("AddCachedEvent Successfully");
    }
    else
    {
        MuninnError err = MuninnStatusCodeHelper.Convert(r.Code);
        Debug.LogFormat("AddCachedEvent Fail, err:{0}, msg: {1}", err.Code, err.Description);
    }
};
MuninnNetwork.AddCachedEvent(tag, data, callback);

// 2.移除CachedEvent
Action<MuninnRemoveCachedEventResponse> callback = (r) =>
{
    if (r.Code == (uint)MuninnCode.OK)
    {
        Debug.LogFormat("RemoveCachedEvent Successfully");
    }
    else
    {
        MuninnError err = MuninnStatusCodeHelper.Convert(r.Code);
        Debug.LogFormat("RemoveCachedEvent Fail, err:{0}, msg: {1}", err.Code, err.Description);
    }
};
MuninnNetwork.RemoveCachedEvent(tag, callback);

StickyEvent接口

string key = "<sticky-event-key>";
byte[] data = Encoding.UTF8.GetBytes("<sticky-event-data>");
StickyEventScope scope = StickyEventScope.Room;

// 1.添加StickyEvent
Action<MuninnSetStickyEventResponse> callback = (r) =>
{
    if (r.Code == (uint)MuninnCode.OK)
    {
        Debug.LogFormat("SetStickyEvent Successfully");
    }
    else
    {
        MuninnError err = MuninnStatusCodeHelper.Convert(r.Code);
        Debug.LogFormat("SetStickyEvent Fail, err:{0}, msg: {1}", err.Code, err.Description);
    }
};
MuninnNetwork.SetStickyEvent(key, data, scope, callback);

// 2.移除StickyEvent
Action<MuninnRemoveStickyEventResponse> callback = (r) =>
{
    if (r.Code == (uint)MuninnCode.OK)
    {
        Debug.LogFormat("RemoveStickyEvent Successfully");
    }
    else
    {
        MuninnError err = MuninnStatusCodeHelper.Convert(r.Code);
        Debug.LogFormat("RemoveStickyEvent Fail, err:{0}, msg: {1}", err.Code, err.Description);
    }
};
MuninnNetwork.RemoveStickyEvent(key, scope, callback);

// 3.查询StickyEvent
Action<MuninnGetStickyEventResponse> callback = (r) =>
{
    if (r.Code == (uint)MuninnCode.OK)
    {
        Debug.LogFormat("GetStickyEvent Successfully");
    }
    else
    {
        MuninnError err = MuninnStatusCodeHelper.Convert(r.Code);
        Debug.LogFormat("GetStickyEvent Fail, err:{0}, msg: {1}", err.Code, err.Description);
    }
};
MuninnNetwork.GetStickyEvent(key, scope, callback);

用户属性接口

//1. 更新用户
Action<MuninnUpdatePlayerResponse> callback = (r) =>
{
    if (r.Code == (uint)MuninnCode.OK)
    {
        Debug.LogFormat("UpdatePlayer Successfully");
    }
    else
    {
        MuninnError err = MuninnStatusCodeHelper.Convert(r.Code);
        Debug.LogFormat("UpdatePlayer Fail, err:{0}, msg: {1}", err.Code, err.Description);
    }
};
MuninnNetwork.UpdatePlayerInfo(new MuninnPlayer() {
    SenderId = 2,  // 房间分配的短id
    Name = "<name>",
    Properties = new Dictionary<string, string>(),
}, callback);

//2. 踢除用户
uint senderId = 2; // 房间分配的短id
MuninnNetwork.KickPlayer(senderId);

3. 更新房间自定义属性
Dictionary<string, string> customProperties = new Dictionary<string, string>()
{
        {"key1", "val1"},
        {"key2", "val2"},
};

Action<MuninnUpdateRoomCustomPropertiesResponse> callback = (r) =>
{
    if (r.Code == (uint)MuninnCode.OK)
    {
        Debug.LogFormat("UpdateRoomCustomProperties Successfully");
    }
    else
    {
        MuninnError err = MuninnStatusCodeHelper.Convert(r.Code);
        Debug.LogFormat("UpdateRoomCustomProperties Fail, err:{0}, msg: {1}", err.Code, err.Description);
    }
};

MuninnNetwork.UpdateRoomCustomProperties(customProperties, callback);

5.SDK错误码

// 服务端的错误[10000, INF)
OK                               = 0,
InvalidParam                     = 10000,
InternalServerError              = 10001,
OperationFailed                  = 10002,
MaxPlayersExceeded               = 20001,
MismatchedAppId                  = 20002,
InvalidJoinCode                  = 20003,
PlayerJoinedAnotherRoom          = 20004,
ConnectionFailed                 = 20099,
UserReLoggedIn                   = 20101,
RoomClosed                       = 20102,
UnexpectedRoomError              = 20103,
ClientTimedOut                   = 20104,
KickPlayerByMasterClient         = 20105,
KickPlayerFailForSelf            = 20106,
KickPlayerFailForNotFound        = 20107,
KickPlayerFailForNonMasterClient = 20108,
UpdatePlayerFailForOffline       = 20201,
UpdatePlayerFailForPermissionDenied = 20202,

// StickyEvent相关的错误码
MaxStickyEventsExceeded  = 20300,
MismatchedStickyEventKey = 20301,
StickyEventKeyNotFound   = 20302,

// 客户端定义的错误码[1, 10000)
InvalidClientAppId     = 1000,
InvalidClientAppSecret = 1001,
InvalidClientPlayerId  = 1002,
MissingJoinCode        = 1003,
MissingRoomProfileUuid = 1004,
MissingOwnerId         = 1005,
RedundantJoinCode      = 1006,

// lobby相关的错误码
LobbyAccessDenied            = 9000,
LobbyAuthenticationFailed    = 9001,
LobbyRoomClosed              = 9002,
LobbyRoomUnknown             = 9003,
LobbyQueryRoomFailed         = 9004,
LobbyMissingAuthToken        = 9005,
LobbyCreateRoomFailed        = 9006,
LobbyCreateRoomLimitExceeded = 9007,
LobbyJoinRoomFailed          = 9008,
LobbyCloseRoomFailed         = 9009,
LobbyChangeRoomStatusFailed  = 9010,
LobbyQuickJoinRoomFailed     = 9010,
LobbyQueryRoomUntilReadyFailed = 9011,
LobbyQueryRoomByRoomCodeFailed = 9012,
LobbyQueryRoomByRoomNameFailed = 9013,
